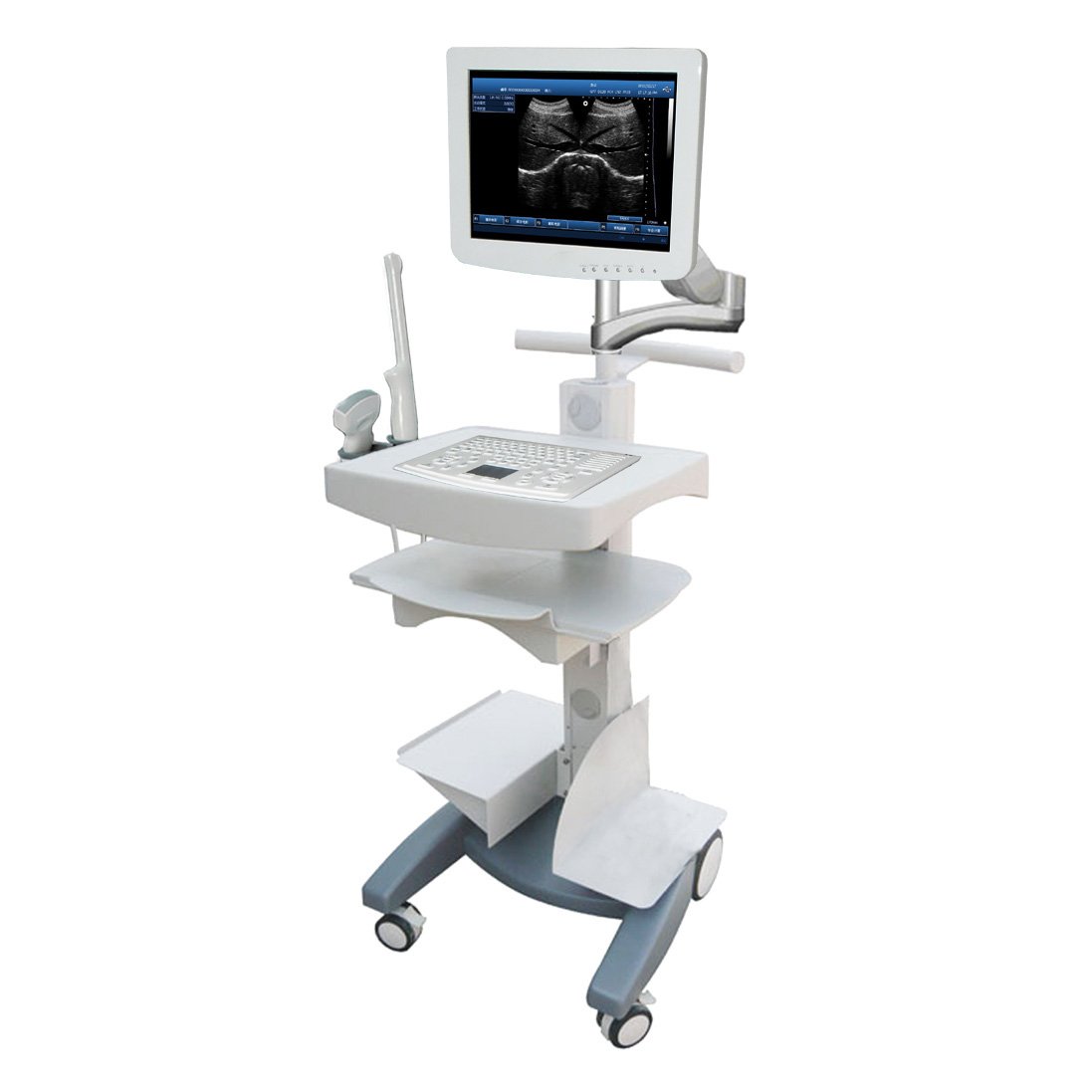

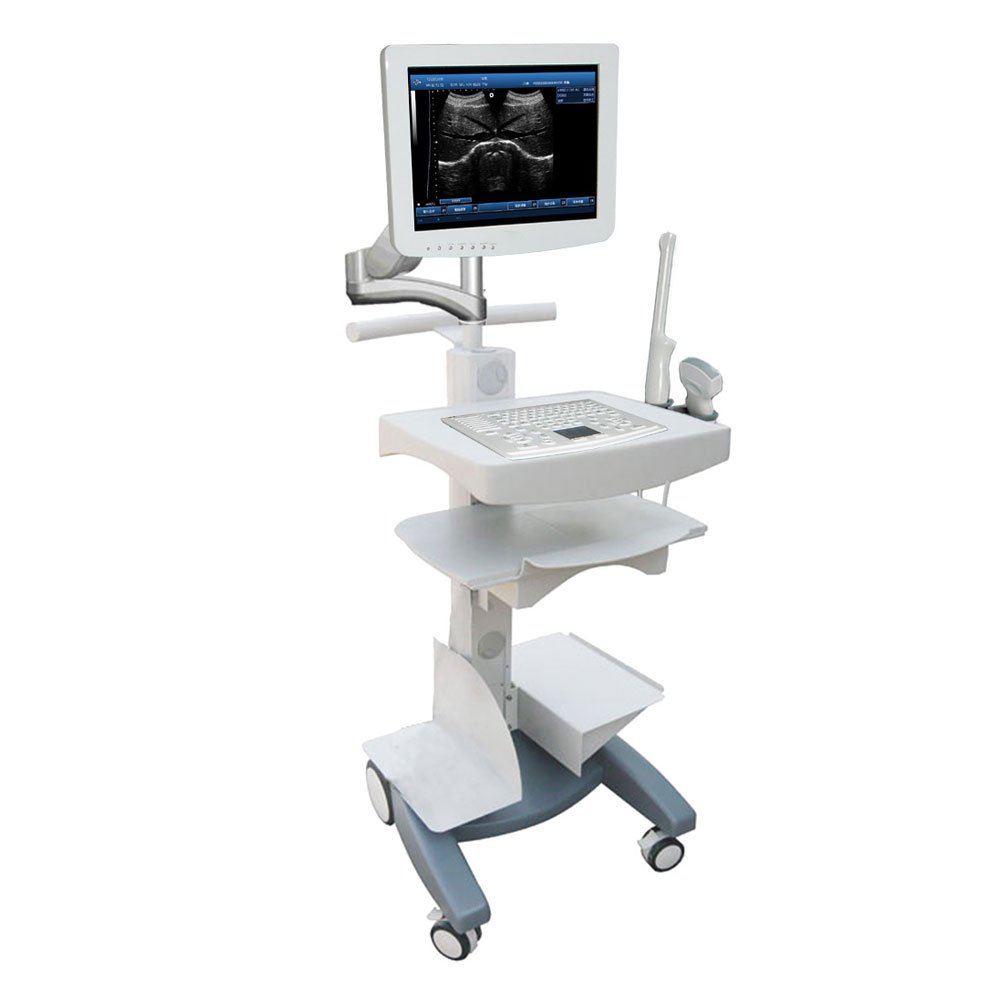

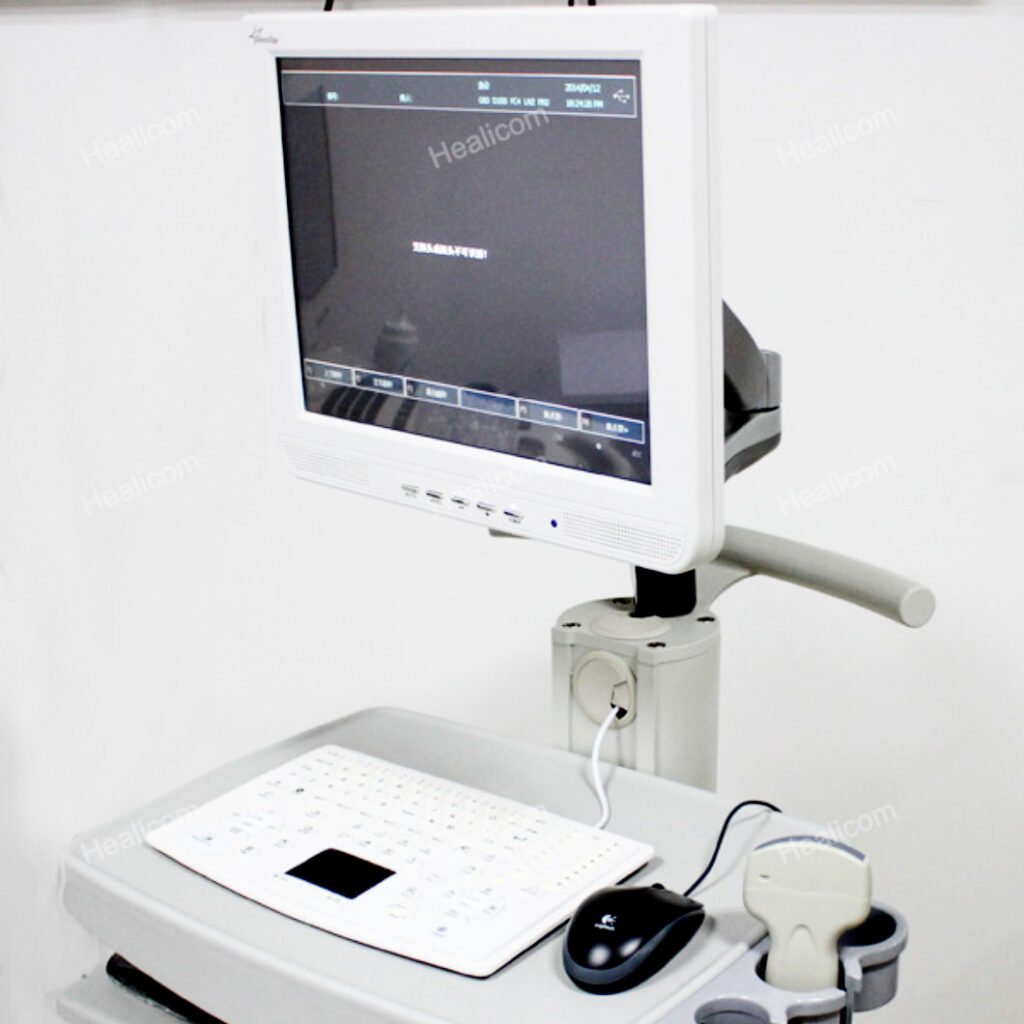

HBW-100 Touch Screen B/W Ultrasound Trolley Scanner

The HBW-100 Medical Ultrasonic Diagnosis Equipment is a highly cost-effective ultrasound machine with a 15-inch touch screen color LCD monitor and silica gel backlight waterproof keyboard. It features full digital imaging technology for crystal-clear images, and supports broadband multi-frequency probes and 3D image function (optional). The device has a large storage capacity of 250G, DICOM display and transfer capabilities, and is compatible with USB laser/inkjet printers. It also includes powerful image and report management, 8-segment TGC, 16-step zoom, and complete application software packages. With multiple language support and foldable design for convenient transportation, this machine offers great value.

Feature
• Full digital imaging technology
• Crystal-clear Image
• Computer platforms, Abundant functions
• Powerful image and report management
• 3D Image Function (optional)
• DICOM display and transfer
• 250G large Storage volume
• Broadband Multi-frequency probes
• Compatible with USB laser/inkjet printers
• Pretty and new appearance
• 15 inch touch screen color LCD monitor
• Silica gel backlight waterproof keyboard
• 8 segment TGC, 16 step zoom
• Complete application software packages
• Can work with external battery (option)
• 2 probe connector
• Can be fold, the transportation is  convenient and lower freight
• Multiple language:  English, French, German, Spanish,  Russian, Italian, Portuguese, etc.

Technical Specifications
D-Maximum Scanning Depth
max. 250mm
Multi-frequency
5 segment frequencies
Zoom
10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Image gray scale
256 level gray scale
Cine Loop
1024 frames
Scanning mode
B, 2B, B/M, M, 4B, 9B, ZOOM; Real-time Zoom on B mode
Image processing
Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion;
Gray scale adjustment, contrast, brightness, γ revision
Gain
Gain: adjustable between 0-100dB;
Time gain control(TGC): 8 segment adjustment, B, M adjustment separately
Measurement and calculation (human)
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
Image store
by hardisk or USB disk, can save image and also video (avi or swf format)
Print
by USB laser / inkjet printers
Probe Connector
2



The black and white ultrasound cart is a versatile piece of medical equipment with a wide range of applications. In hospitals, it is commonly used in emergency departments to quickly assess patients with acute abdominal pain, providing immediate diagnostic information to guide treatment decisions. In obstetrics and gynecology wards, it allows for bedside monitoring of pregnant women, checking fetal development and maternal health conditions without the need for patients to move to a separate imaging department. In rural or underserved areas, the portability of the ultrasound cart makes it an invaluable tool for mobile medical teams. They can bring it to local clinics or even remote villages to conduct basic diagnostic imaging, such as checking for gallstones or liver conditions, helping to bridge the gap in medical resources. Additionally, it is used in field hospitals during disaster relief operations or military missions, where it can provide critical imaging support in austere environments. In research settings, the black and white ultrasound cart can be used to collect data for studies on various medical conditions, contributing to advancements in medical knowledge. Overall, its mobility, ease of use, and reliability make it a crucial asset in diverse healthcare scenarios.
