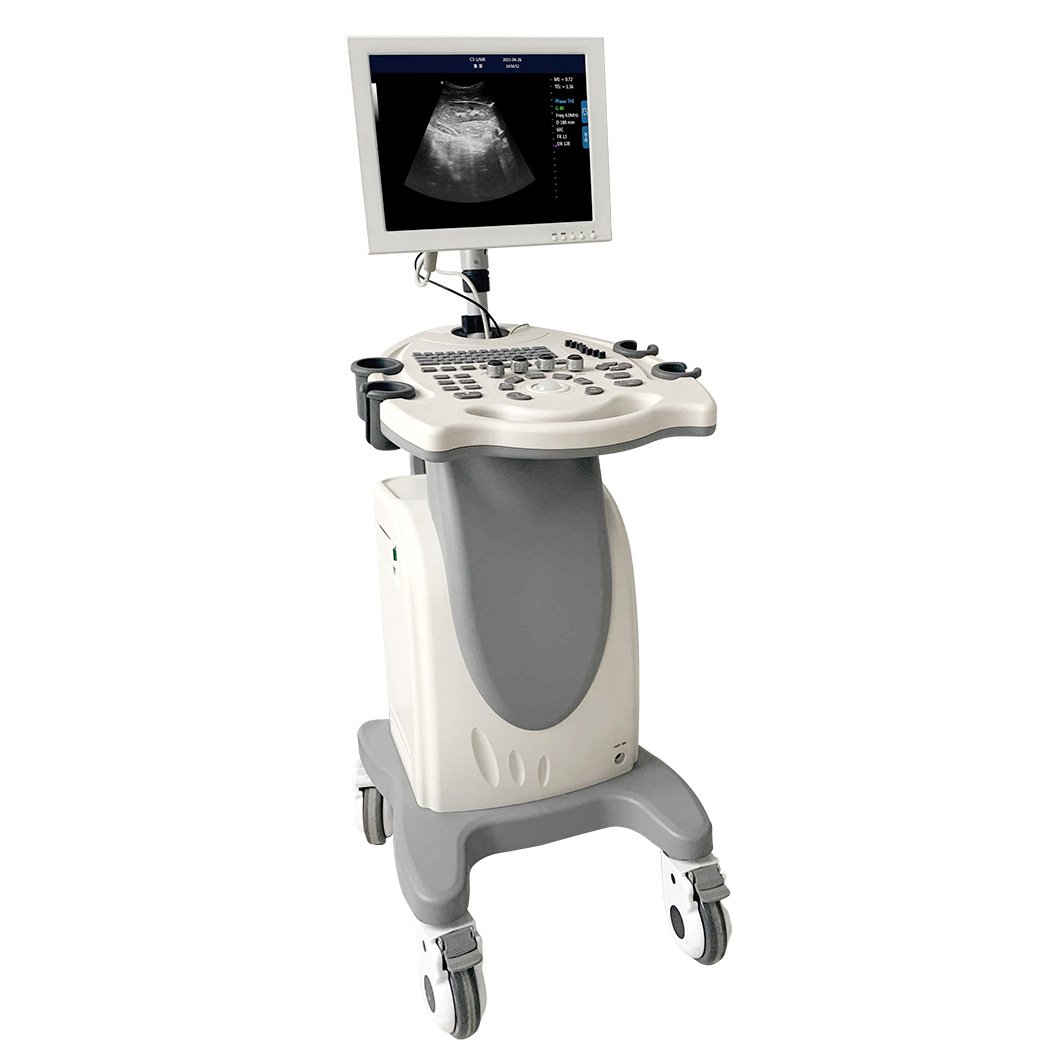

The HBW-11P Full-digital Trolley Ultrasound Scanner features a 15-inch LED screen with flexible viewing angles and a back-lit keyboard for easy use in dark rooms. It offers real-time dynamic receiving focus, adjustable sound velocity, and high-accuracy DSC digital image formation technology. The scanner includes intelligentized 8-segment TGC adjustment, 3 probe connectors, and a USB port for convenient image storage. Its operating system provides an intuitive menu, puncture guide lines, and a large cine loop capacity for enhanced diagnostic accuracy.
Feature
• Display: 15 inch LED screen
• Real-time dynamic receiving focus point by point
• Real-time dynamic sound velocity changed
• High-accuracy DSC Digital image formation technology
• Intelligentized 8-segment TGC adjustment
• 3 probe connectors,USB port
• Progressive SMT components technology to ensure machine reliability
Technical Specifications | |
Scanning mode | Convex / linear / micro-convex |
Probes | Convex, Linear, Transvaginal, Rectal |
Monitor | 15 inch high resolution LED |
Operation panel | User-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation |
Display modes | B, B+B, 4B, B+M, M |
Detecting depth | ≥244mm |
Resolution | lateral ≤2mm, axial ≤1mm |
Blind Zone | ≤3mm |
Geometry precision | lateral ≤5%, axial ≤5% |
Gray scale | 256 |
Electronical focusing | 2 focuses combination randomly |
Cine loop | 256 frames, realized in automatic successive playback and manual single step forward, backward playback |
USB port | storable and readable |
Permanent image storage | 8 |
Magnification | ×0.8, ×0.85, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5 (16 kinds) |
Body marks | 30 kinds |
Probe interface | 3 |
Pseudo color | 7 kinds |
Image processing | up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor (need external color display) |
Measurement | distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc |
Note | date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion |
Output interface | PAL-D, SVGA (SVGA color monitor), USB port |
Operating System
• 15 inch LED liquid crystal display, angle range is more flexible to adjust
• Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom
• Intelligentized menu,man-machine diaglogue is easy and quick
• Puncture guide line can display under B mode, angle and position are adjustable
• More magnification display, Disease diagnosis more accurate
• USB storage is connected outside, more convenient to upload pictures
• Large capacity of cine loop, image can display circularly and automatically
