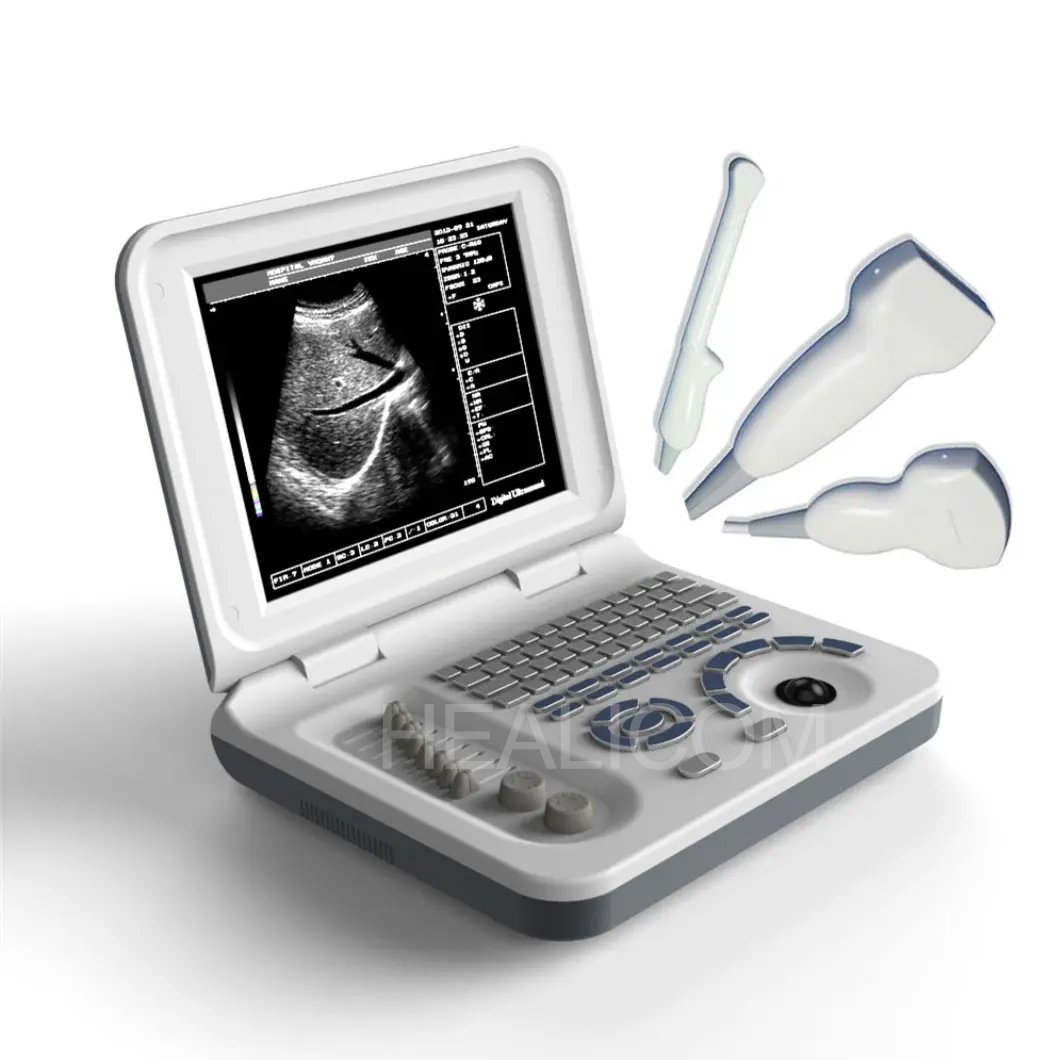

The HBW-3 All Digital Laptop B/W Ultrasound System is a portable diagnostic device featuring a 10.4″ LED display with 256 gray levels. It supports multiple display modes including B, B/B, 4B, B+M, and M. The system has a dynamic range of 0~120dB and offers 16 kinds of pseudo colors for enhanced visualization. It includes an 8-segment TGC control and overall gain adjustment for optimal image quality. The HBW-3 can store up to 128 images permanently and has a cine loop capacity of 256 consecutive images. It also features E-zoom for magnifying real-time images and various frequency conversion options to match different probes. The system is equipped with USB ports for image storage and printing, making it versatile for clinical use.
Main Parameter | |
Main Machine | Laptop . |
10.4 “LED Player. | |
Backlight Key. | |
Lithium battery. | |
Main Parameter | Display modes: B, B/B, 4B, B+M, M. |
Gray scale: 256 levels. | |
Dynamic range: 0~120dB adjustable. | |
External LED display have 16 kinds of pseudo color. | |
Permanent storage: 128 images . | |
Capacity cine loop: real time display 256 consecutive images which are memorized successively. | |
Gain control: 8 segments TGC and overall gain can be adjusted respectively. | |
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe. | |
Image multiplying factor:3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 (six modes)×0.8, ×1.0 (display penetration depth). | |
E-zoom: magnify 2 times of realtime image. | |
Focus position: dynamic electron focusing. | |
Output Interface | 1 groups of USB video output 1 groups of SVGA video output may mate with SVGA color monitor.1 groups of PAL video output may mate with PAL monitor, video image recording instrument and image workshop, etc. |
USB Port: our machine can connect the common printer . Used to print the measurement report page. | |
The HBW-3 All Digital Laptop B/W Ultrasound System is a versatile and portable diagnostic tool designed for various clinical applications. It features a 10.4″ LED display with 256 gray levels, providing clear and detailed B-mode and M-mode images. The system supports multiple display modes, including B, B/B, 4B, B+M, and M, and offers 16 kinds of pseudo colors for enhanced visualization. Its dynamic range is adjustable from 0 to 120 dB, and it includes an 8-segment TGC control and overall gain adjustment for optimal image quality. The HBW-3 also supports five periods of frequency conversion, ranging from 2.5 MHz to 7.5 MHz, which can match different high-frequency probes. It can store up to 128 images permanently and has a cine loop capacity of 256 consecutive images. The system is equipped with USB ports for image storage and printing, making it convenient for clinical use. Additionally, it features E-zoom for magnifying real-time images and dynamic electron focusing for improved image clarity. The HBW-3 is suitable for a wide range of applications, including abdominal, obstetric, and gynecological examinations, and it can be equipped with various probes such as convex, linear, transvaginal, and micro-convex probes.
The HBW-3 All Digital Laptop B/W Ultrasound System is suitable for a variety of departments due to its versatile applications. It is commonly used in the following departments:
1. Obstetrics and Gynecology Department**: The system can perform obstetric examinations to monitor fetal development, measure gestational age, and estimate fetal weight. It is also useful for gynecological examinations to assess the condition of the uterus, ovaries, and other pelvic organs.
2. General Surgery Department**: The HBW-3 can be used for abdominal examinations to evaluate organs such as the liver, gallbladder, pancreas, and kidneys. It helps in diagnosing conditions like gallstones, liver cysts, and kidney abnormalities.
3. Urology Department**: The system aids in examining the urinary system, including the kidneys, ureters, and bladder. It can detect issues such as kidney stones, bladder tumors, and prostate enlargement.
4. Cardiology Department**: Although primarily a B/W ultrasound system, it can provide basic cardiac imaging for preliminary assessments. It can measure heart rate and assess the general condition of the heart.
5. Emergency Department**: Due to its portability and quick imaging capabilities, the HBW-3 can be used in emergency situations to quickly assess patients’ conditions, such as detecting abdominal bleeding or evaluating trauma.
Overall, the HBW-3 All Digital Laptop B/W Ultrasound System is a valuable tool in various clinical settings, providing quick and reliable diagnostic imaging for multiple medical specialties.
