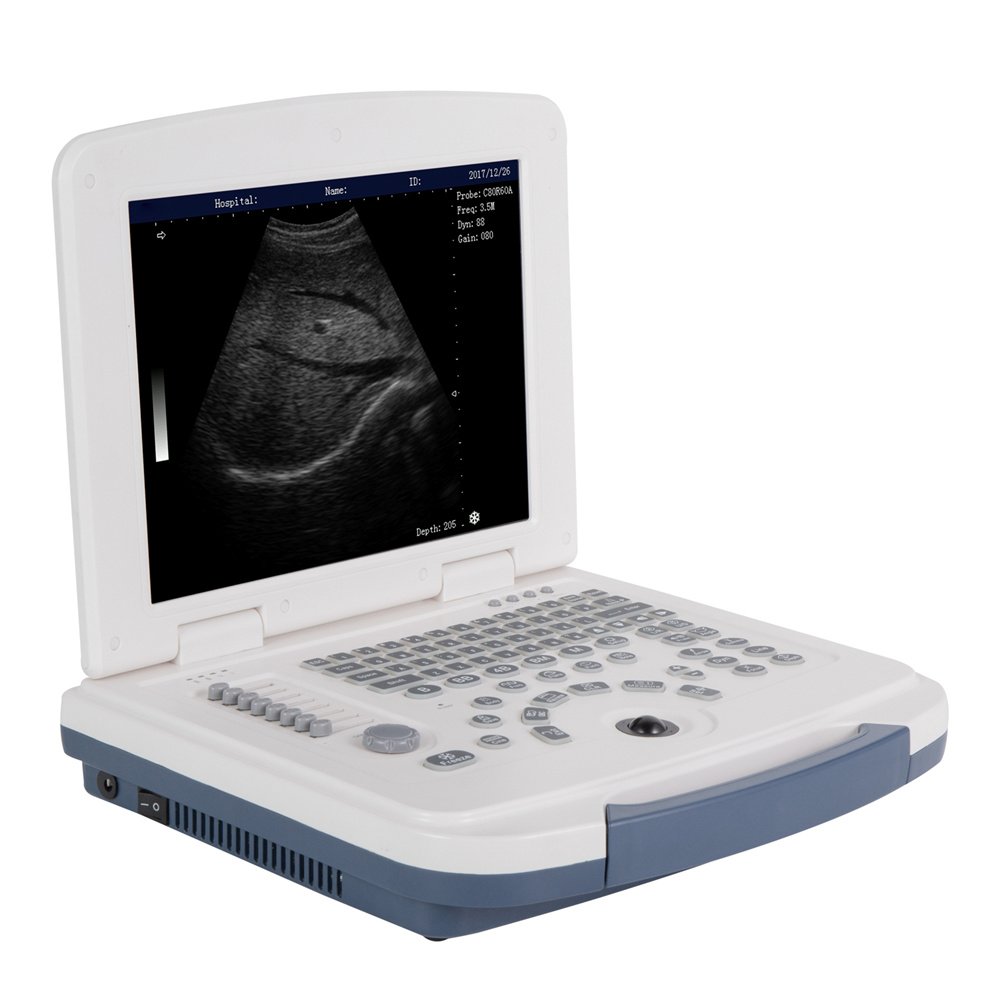

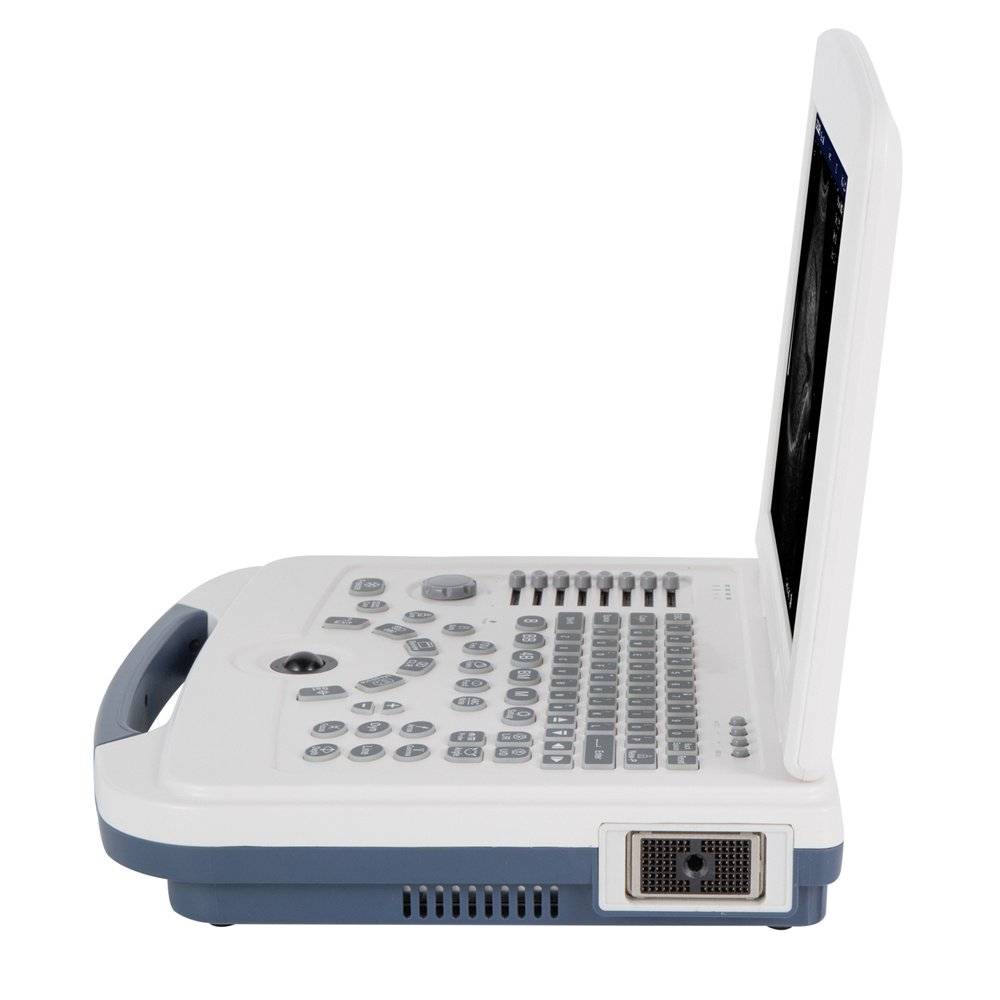

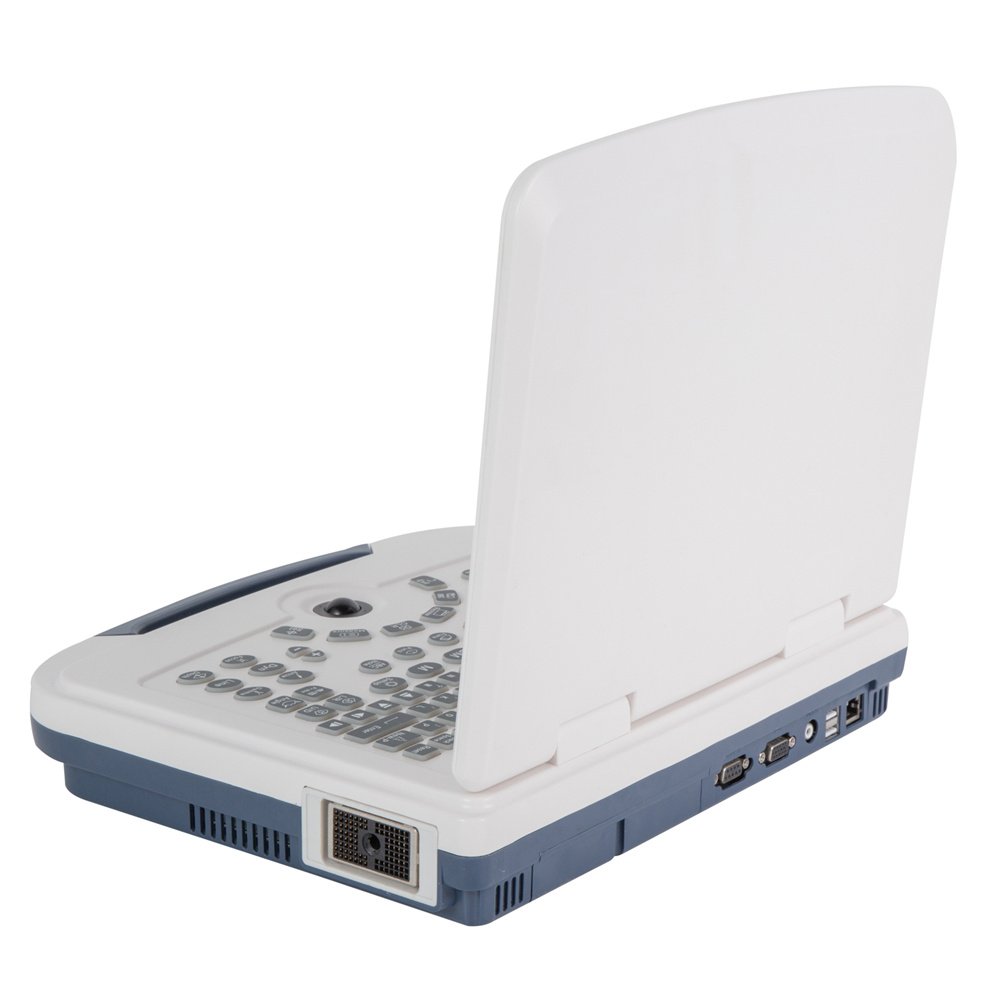

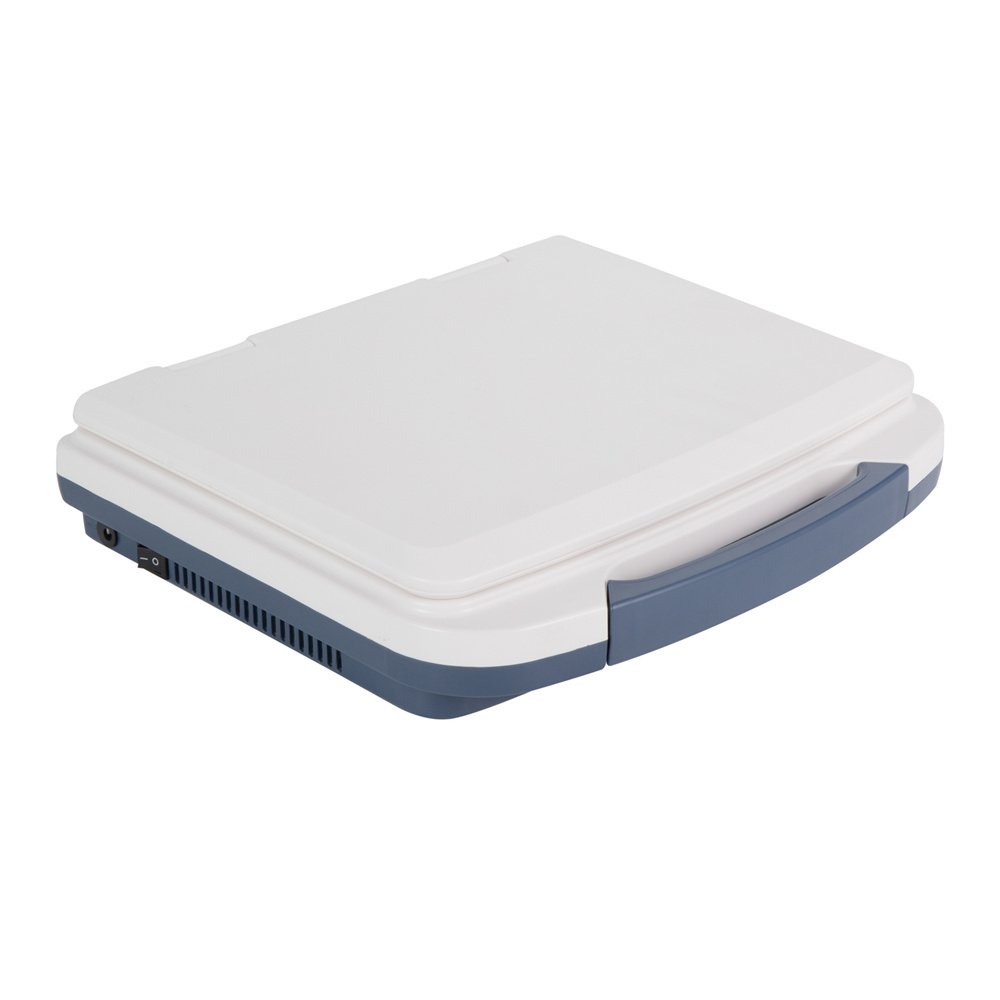

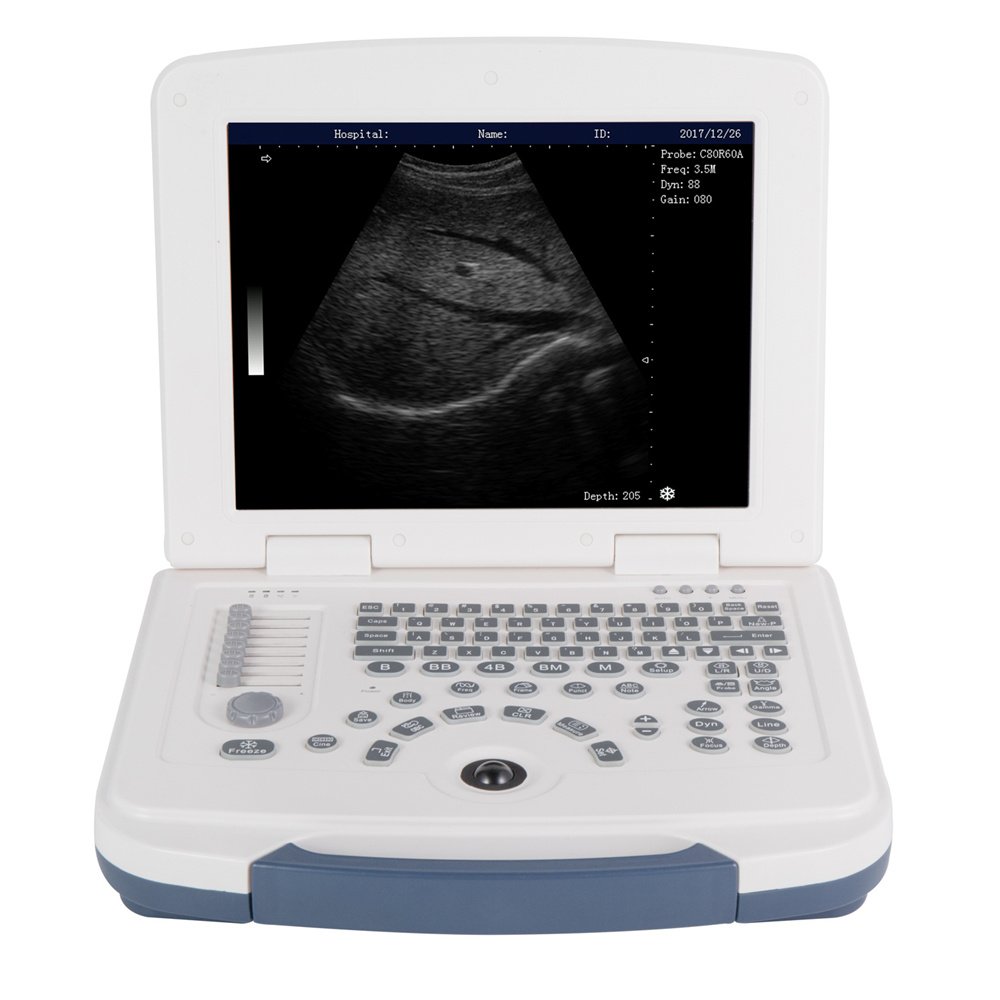

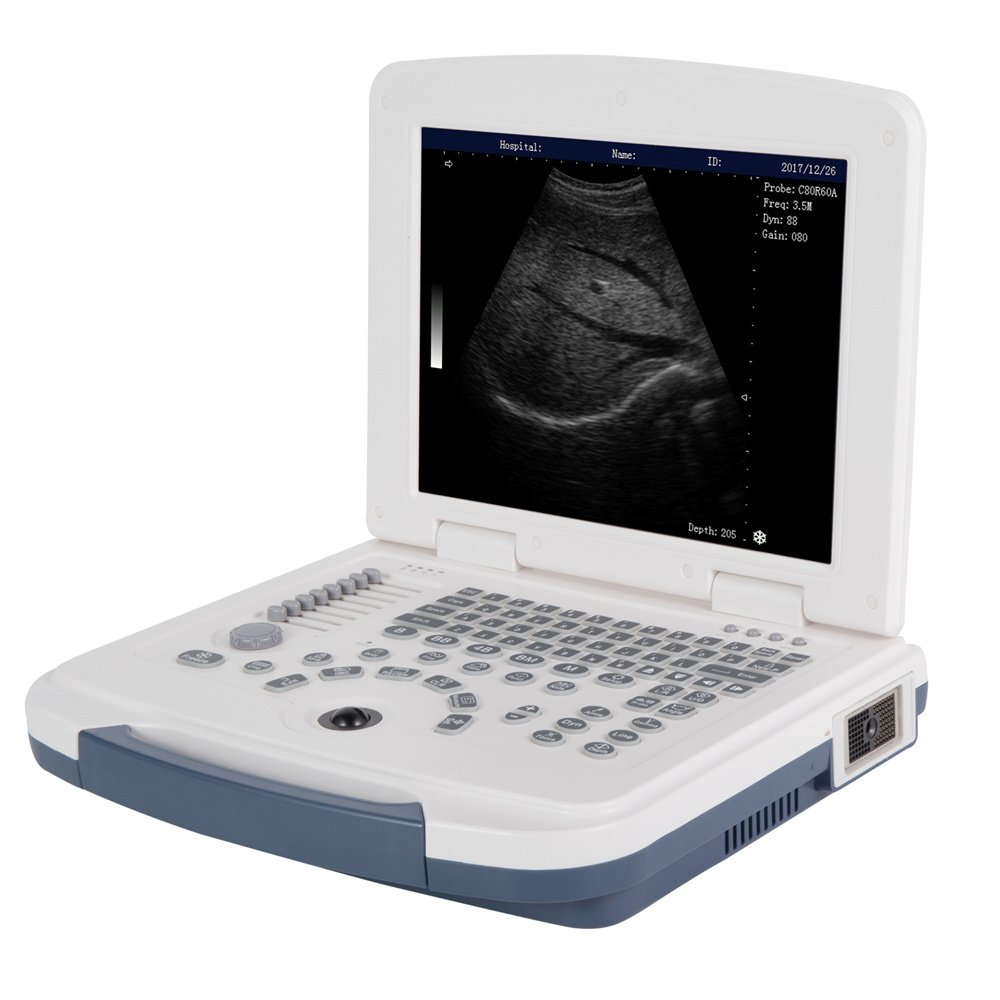

The HBW-4 Medical Laptop B/W Ultrasound Scanner is a versatile and portable diagnostic device designed for medical professionals. It features a compact laptop form factor, making it easy to transport and use in various clinical settings. The scanner provides high-quality black and white imaging, offering clear and detailed scans for accurate diagnosis. Equipped with advanced ultrasound technology, it supports a range of medical applications, including obstetrics, gynecology, cardiology, and general imaging. Its user-friendly interface and reliable performance make it an essential tool for healthcare providers.
Application to
Abdomen, obstetrics and gynecology, pediatrics, urology, small organs, musculoskeletal and so on. Widely used in expert visits, community service visits, 120 emergency center, Large-scale medical examination car, Severe patient, bedside examination of VIP wards etc
Features
1. 12.1 inch LCD display
2. 2D image
3. Depth range:126-307mm
4. Built-in rechargeable battery (4-8H)
5. Thin and light notebook design
6. Display mode: B, B + B, 4B, B + M, M
7. Full-digital beam imaging technology
Technical Specifications | |
Scanning mode | convex / linear |
Monitor | 12.1 inch high resolution color LED display |
Display mode | B, B+B, B+M, M, 4B |
Total Gain | 0-99 |
Detecting depth | 0-240mm |
Dynamic range | 0-120dB |
Filtering | 1-7 |
Blind Zone | ≤3mm |
Resolution | lateral≤2mm, axial≤1mm |
Geometry precision | lateral≤5%, axial≤5% |
Focus | 4 focuses combination randomly |
Image storage | 127 |
Magnification | ×0.8, ×1.0, ×1.20, ×1.50, ×1.80, ×2.0 (6 kinds) |
Cine loop | 256 frames, realized in automatic successive playback and manual single step forward, backward playback |
Image processing | up/ down, left / right, black / white conversion, gamma correction, frame correlation, pseudo color processor( need external color display) |
Measurement | distance, perimeter, area, volume, HR, BPD, CRL, GS, FL, HC, AC, etc. |
Output interface | PAL-D, SVGA (SVGA color monitor), USB port |
