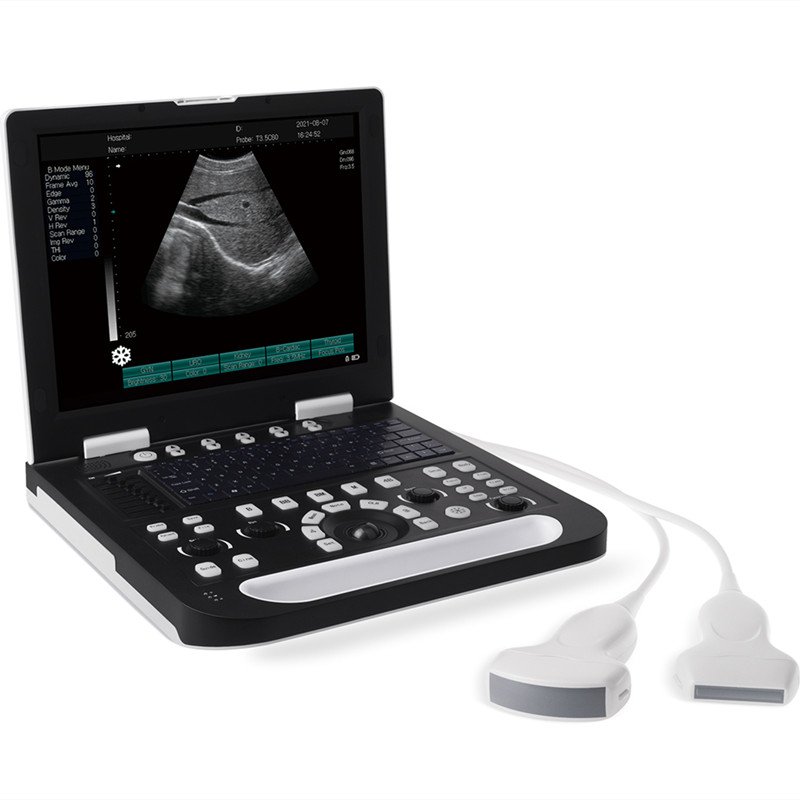

The HBW-8 is a versatile and cost-effective full digital portable B/W ultrasound device. It features a 15-inch LCD display for high-quality imaging and dual probe interfaces with automatic identification. The ARM platform ensures fast computing and HD imaging. It has a removable 6000mAh lithium battery, four encoders for convenient operation, and supports multi-language switching. The device is suitable for abdomen, obstetrics, pediatrics, urology, small organs, and musculoskeletal examinations. It is widely used in expert visits, community services, emergency centers, large-scale medical examination vehicles, and VIP wards.
Features
* 15 inches LCD display zone for large image size, with high quality.
* Probe Interface:Dual probe interface, with automatic identification function
* ARM platform, fast computing, HD imaging
* Battery Capacity: Independent battery compartment /removable lithium battery /6000 mAh
* Four encoders, knob design, quick and convenient operation
* Support multi-language switching
* Movie playback: 256 frames, can be played back frame by frame and pause playback, pause playback can be used for image preservation and measurement
* Measurement: Professional measurement software;
* Host size: 360mm(L)*355mm(W)*65mm(H)
Applicable Object:
Technical Specifications | |
Display | 15 inch LED screen |
Probe Interface | Dual probe interface, with automatic identification function |
Battery Capacity | removable lithium battery /6000 mAh |
Display mode | B, B + B, 4b, B + m, m |
Movie playback | 256 frames, can be played back frame by frame and pause playback, pause playback can be used for image preservation and measurement |
Language | Chinese/English |
Electron focusing | four stage electron focusing |
Frequency conversion | All probes support five-stage frequency conversion |
Image mirror | upper and lower mirror, left and right mirror, black and white flip |
Measurement | Professional software measurement package |
Gain range | 0-135db |

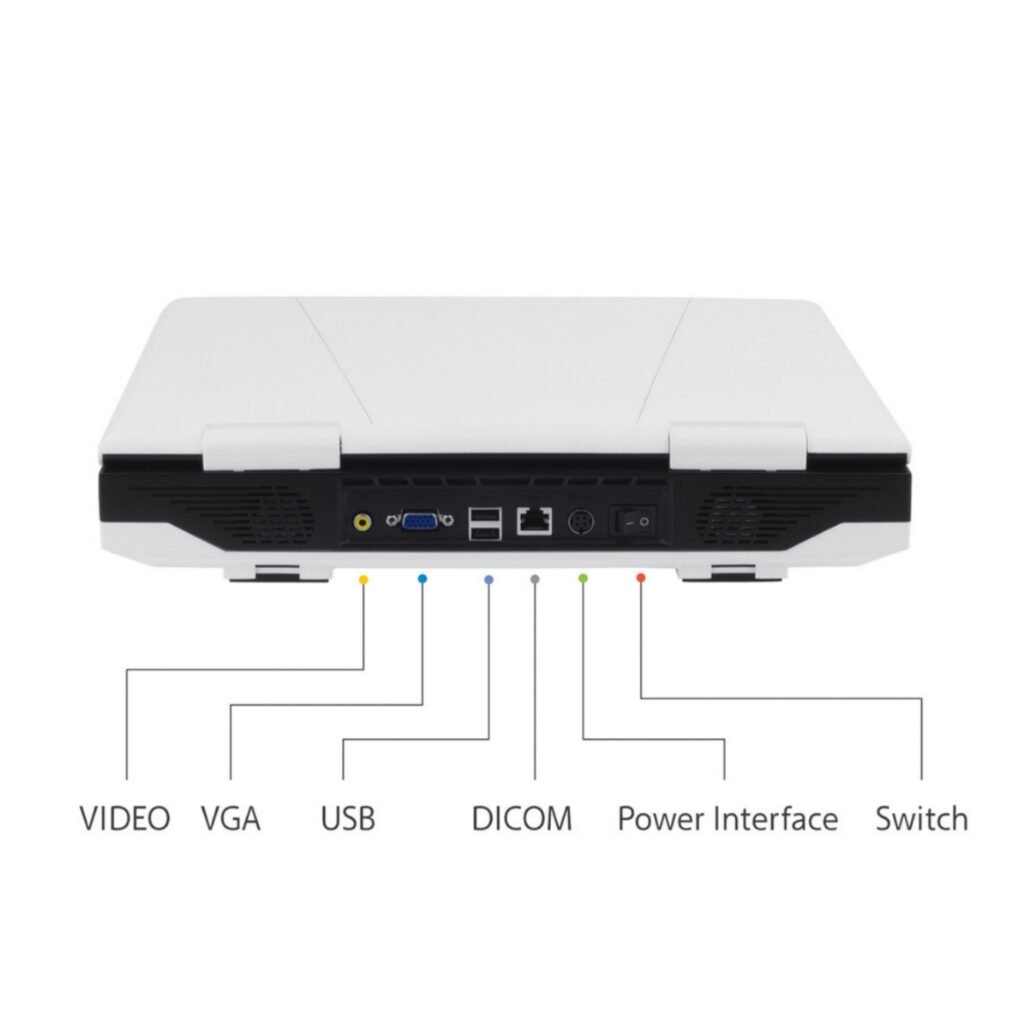

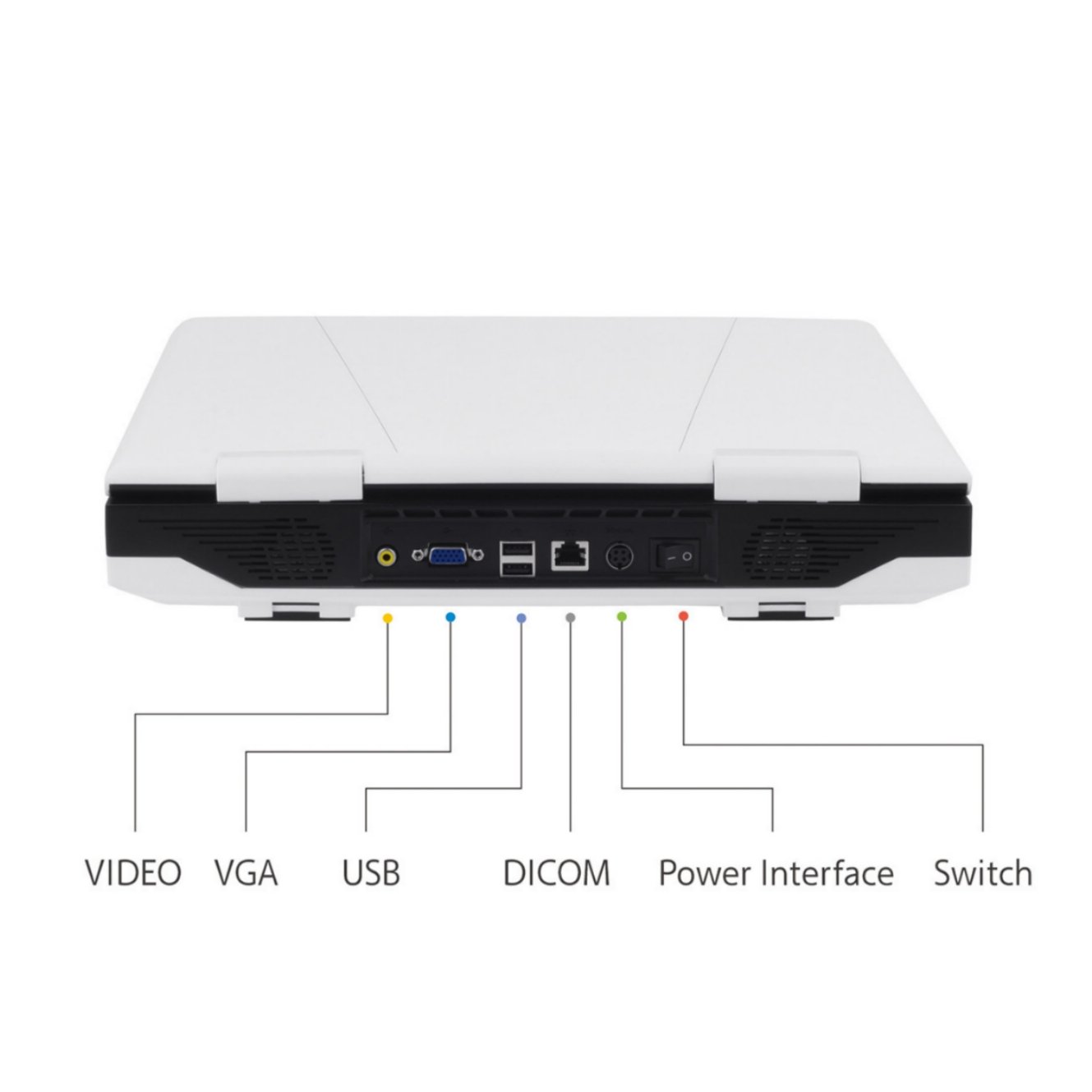

Interface | video interface, two USB interface, DICOM interface, VGA interface, power interface |
Permanent storage | 16G built-in storage, can also be connected to external U disk storage |
Grey scale | level 256 |
Dynamic range | 0-135db |
Front process | variable aperture, dynamic trace change, dynamic digital filtering, etc |
Blind area | ≤4 |
Maximum display depth | 300mm |
Geometric accuracy | transverse ≤5%, longitudinal ≤5% |
Resolution | lateral ≤2mm, axial ≤1mm |
