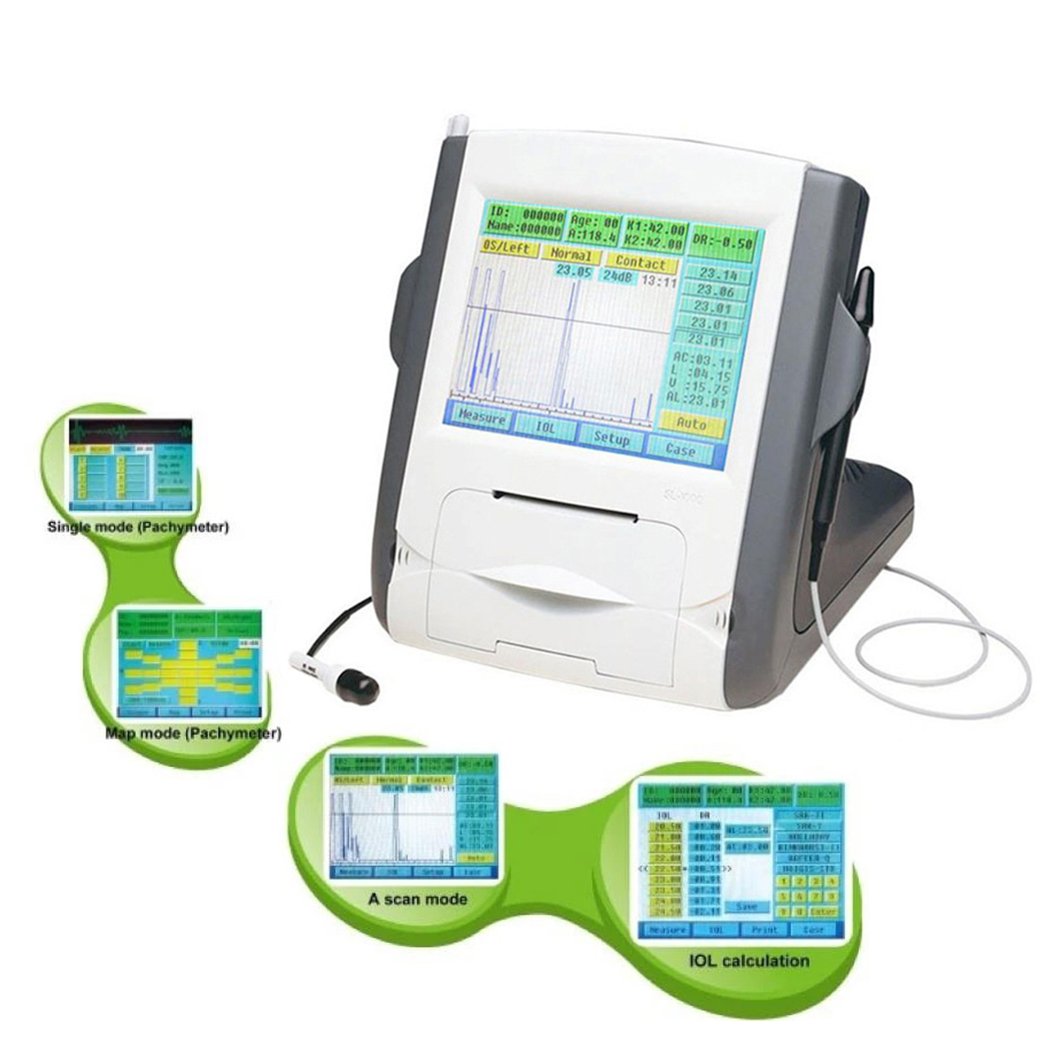

HO-1000 Ophthalmic A Scan With Pachymeter

The HO-1000 Ophthalmic A-Scan/Pachymeter, equipped with macular recognition technology, offers precise measurements of axial length, anterior chamber depth, lens thickness, and intraocular lens calculations. Featuring automatic gain compensation for both central and peripheral areas, it ensures accurate assessment of corneal thickness across these regions. This device is extensively utilized for preoperative evaluations and postoperative outcome assessments in refractive surgery.

Get Quote

Ophthalmic A Scan with Pachymeter

HO-1000 A-Scan/Pachymeter measures axial length, corneal thickness, and IOL calculations, ideal for refractive surgery pre/post-op evaluations.

Feature

•Compact body, light weight

•Friendly LCD Touch Screen

•Contact and Immersion Modes

•Multiple IOL power calculation

•Built-in Thermal Printer

•Capable of connecting to PC


Get A Free Quote Now

Product parameters

A scan probe: 10MHz import small size probe, built-in luminotron
Measuring range: 15mm-40mm
Measurement precision: ±0. 05mm; with macula lutea trace function
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average Method of measurement: immersion and contact
Eye mode: Phakic/ Aphakic/Dense/ various IOL
IOL formula:SRK-II,SRK-T,BINKHORST-II, HOLLADAY, HOFFER-Q, HAIGIS
Enter the name & ID; easy to check archive
Storage: 10 cases, 5 readings each case
Output: A scan waveform and IOL calculation sheet

P scan probe: 20MHZ, angle of 45 degrees makes easier operation
Resolution: 5um
Measuring range: 150um~1500um
Display: SINGLE mode and MAP mode
Can display ultrasound waveform when measuring
Each group is the average of 20 measurements
Switch between IOP measured
value and actual value
Can input name, ID and operator’s name

Others:
Large color liquid-crystal screen
Touch screen input, easy operation
Curve freezing: Manual/Auto mode, controlled by pedal
Built-in speed thermal printer

Application Of Ophthalmic Ultrasound A/B Scanner

The ophthalmic A-scan with pachymeter is widely used for precise measurements of axial length, anterior chamber depth, lens thickness, and corneal thickness. It is essential for intraocular lens (IOL) calculations, preoperative assessments, and postoperative evaluations in cataract and refractive surgeries, ensuring accurate diagnostics and treatment planning.
