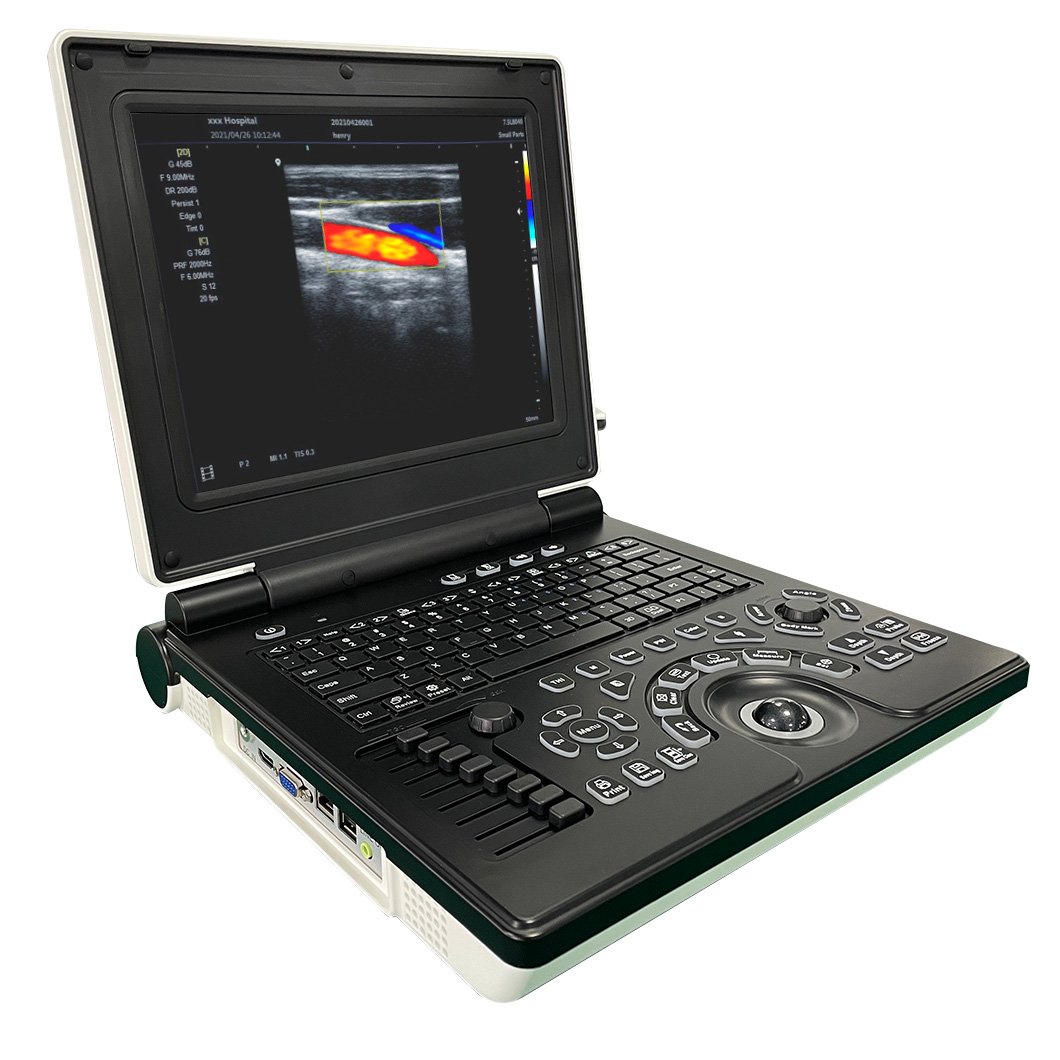

The HUC-180 Laptop Color Doppler Ultrasonic System is a versatile diagnostic tool with a 12-inch LCD display and Windows 7 operating system. It supports multiple imaging modes, including B, B+B, 4B, B+M, CFM, PDI, and PW. The system can accommodate various probes such as convex, linear, cavity, and micro-convex, and offers optional 3D imaging. It features THI imaging technology, IMT automatic measurement, and a built-in 120GB solid-state drive for secure data storage. The system also supports 7 languages (Chinese, English, Russian, Portuguese, Spanish, French, and German), and includes an editable report page. With rich image processing capabilities, 15 pseudo-color options, and a 3200mAh rechargeable battery, the HUC-180 is designed for efficient and portable medical imaging.
Main Features:
Technical Specifications | |
Display modes | B, B/B, 4B, B+M, CFM, B+CFM, PDI, B+PDI, PW |
Gray scale | 256 levels |
Dynamic range | 80 – 280dB adjustable |
Application mode | OB, GYN, Small organ, Urology, Pediatric, Cardiac etc; |
Display penetration depth | 1~400mm |
Probe frequency | 2MHz~ 12MHz (depend on probe type) |
Gain control | 8 segments TGC and overall gain can be adjusted respectively |
Focus position | dynamic electron focusing |
Probe connector | 2 activated |
Interface Port | HDMI, VGA, DICOM, USB, Line Out |
The HUC-180 Laptop Color Doppler Ultrasonic System is a versatile and advanced diagnostic tool with a 12-inch LCD display and Windows 7 operating system. It supports multiple imaging modes, including B, B+B, 4B, B+M, CFM, PDI, and PW, and can be used with convex, linear, cavity, and micro-convex probes. The system features THI imaging technology, IMT automatic measurement, and supports 7 languages (Chinese, English, Russian, Portuguese, Spanish, French, and German). It also offers 15 kinds of pseudo-colors, a built-in 120GB solid-state drive for secure storage, and a 3200mAh rechargeable battery with management. The HUC-180 includes rich image processing capabilities such as frame averaging, view angle adjustment, edge enhancement, and Gamma correction. It has preset parameters for different scanning organs, an IMT automatic measurement function, and a built-in editable report page.
