The HUC-200 Ultrasonic System is a portable color ultrasound device with advanced features. It offers various imaging modes including B, B+B, 4B, B+M, CFM, B+CFM, PDI, PDI+B, PW, and optional 3D. The system supports multiple scanning modes such as electron convex array, high-frequency linear array, cavity, micro convex, and rectum. It features a 15-inch LCD screen and a scanning depth of 2-280mm. The operating frequency range is 2.0-12.0MHz, and it has 2 automatic probe identification ports. The device is suitable for applications in abdomen, gynecology, obstetrics, superficial organs, pediatrics, urology, heart, and blood vessels. It also includes full digital multi-beam formation, speckle noise suppression, and tissue harmonic imaging. The compact size is 370mm×382mm×90mm, and it weighs ≤6.5kg.
Feature:
Image mode:B, B+B, 4B mode, B+M mode, CFM color blood flow pattern, B+CFM mode, PDI energy mode, PDI+B mode, PW mode, B-tilt mode (Note: B-tilt is only applicable to high frequency linear probes less than or equal to 40mm), 3D mode (Optional)
Display: 15 inch LCD screen
Scanning mode: electron convex array, high frequency linear array, cavity, micro convex, rectum;
Scanning depth: 2-280mm
Operating frequency range: 2.0-12.0MHz
Probe interface: 2 automatic probe identification ports
Dynamic range: 80~280dB adjustable;
Display modes: B, B/B, 4B, M, CFM, CMF/B, PDI, PW, THI;
Application mode: abdomen, gynecology, obstetrics, superficial organs, pediatrics, urology, heart, blood vessels and other modes;
Imaging mode: full digital multi-beam formation, speckle noise suppression, tissue harmonic imaging, etc.
Sound output: mechanical index, thermal index real-time display, sound power adjustable and real-time display;
Gray level: 256;
Display depth: ≥280mm;
Pseudo-color processing: 16 pseudo-color coding options;
Appearance size: 370mm×382mm×90mmm (length × width × height)
Weight ≤ 6.5Kg
Product parameters | |
Gain adjustment | 8 segments TGC, B/M/D/C gain can be adjusted respectively, TGC curve can be displayed and automatically hidden; |
Image processing | 5 levels of image optimization, edge enhancement, frame average, line average, focus optimization, noise suppression, gamma correction, squeeze curve, contrast, brightness adjustable, up and down, left and right flip; |
Automatic optimization function | built-in multiple check types, according to different check types, preset the best image check conditions, reduce the adjustment operation keys; |
Measurement and calculation | B mode conventional measurement, distance, circumference, area, volume, Angle, ratio, and shorthand rate, M mode conventional measurement, woman Department measurement, obstetrics measurement, cardiology measurement, urology measurement, PW measurement and other measurements. |
Image annotation | alphanumeric input, adjustable annotation arrows, labels and comments, body markers, patient and hospital ids, etc. |
Image storage | image storage, video storage, movie playback, solid state disk storage capacity ≥128G; |
Patient data | medical record management, report query and printing, image and video output (hard disk, USB, optional DVD-RW), built-in ultrasound workstation; |
Report page system | automatic report generation system, and full-screen characters in Chinese and English editing; |

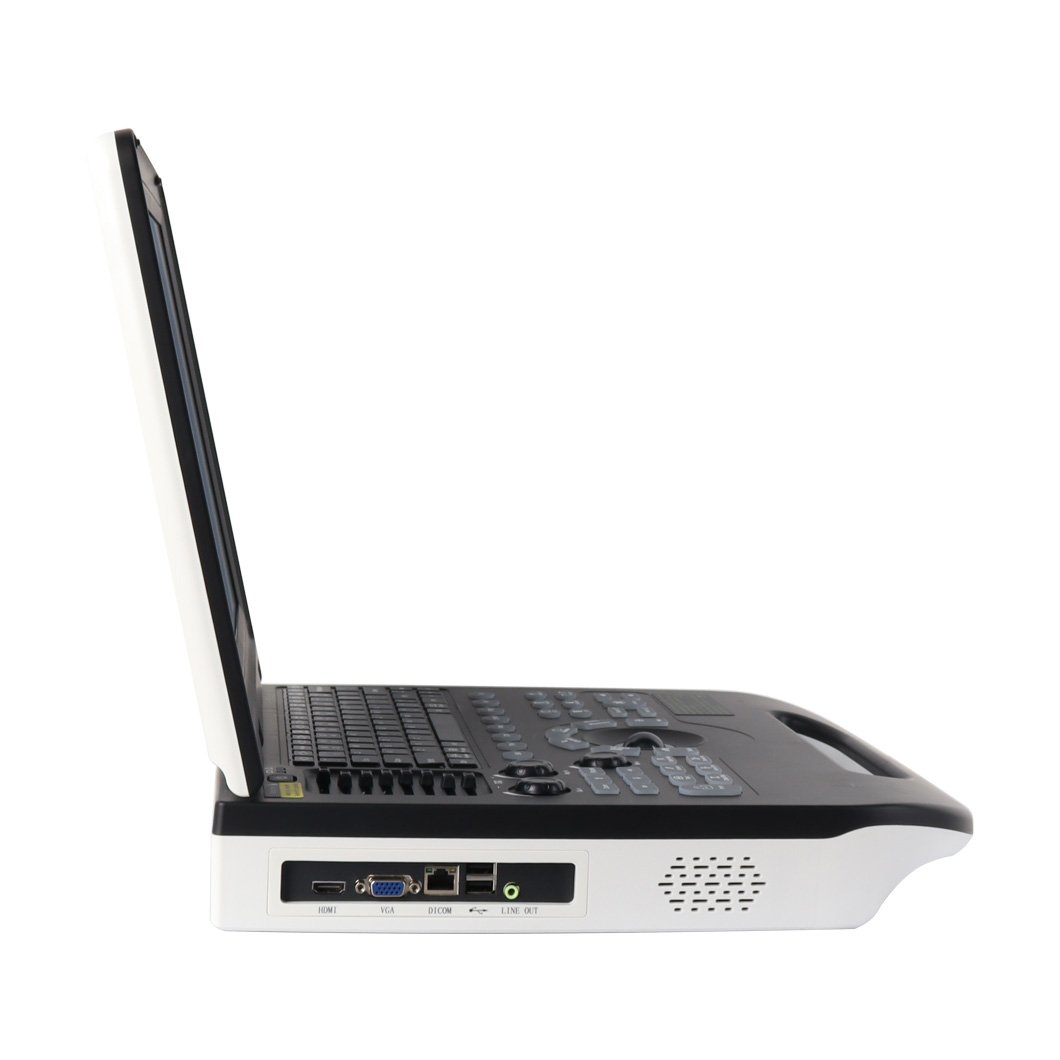

Interface | HDMI, VGA, USB, DICOM interface. |
Support probe | electronic linear array CT7.5L40GN, electronic convex array CT3.5C60GN, electronic cavity CT6.5C10GN, electronic slightly convex CT3.5C20GN, Electronic convex CT6.5C8015, electronic convex CT7.5C8020, electronic rectal CT6.0L8064 |
Input voltage | 100-240V, 50/60Hz, 19V,6A,DC adapter |
Battery power supply | ≥1.5 hours (4.5 hours battery is optional) (Actual battery working time may vary according to the use environment) |
The HUC-200 Ultrasonic System is a versatile portable color ultrasound device designed for diverse medical applications. It features a 15-inch LCD screen and supports multiple imaging modes such as B, B+B, 4B, B+M, CFM, B+CFM, PDI, PDI+B, PW, and optional 3D. The system offers various scanning modes including electron convex array, high-frequency linear array, cavity, micro convex, and rectum probes, with a scanning depth range of 2-280mm and an operating frequency of 2.0-12.0MHz. It includes 2 automatic probe identification ports and adjustable dynamic range (80-280dB). The HUC-200 also provides full digital multi-beam formation, speckle noise suppression, tissue harmonic imaging, and real-time display of mechanical and thermal indices. Suitable for abdomen, gynecology, obstetrics, superficial organs, pediatrics, urology, heart, and blood vessels. Compact and lightweight (≤6.5kg) with dimensions of 370mm×382mm×90mm, it is ideal for point-of-care use and mobile diagnostics.
