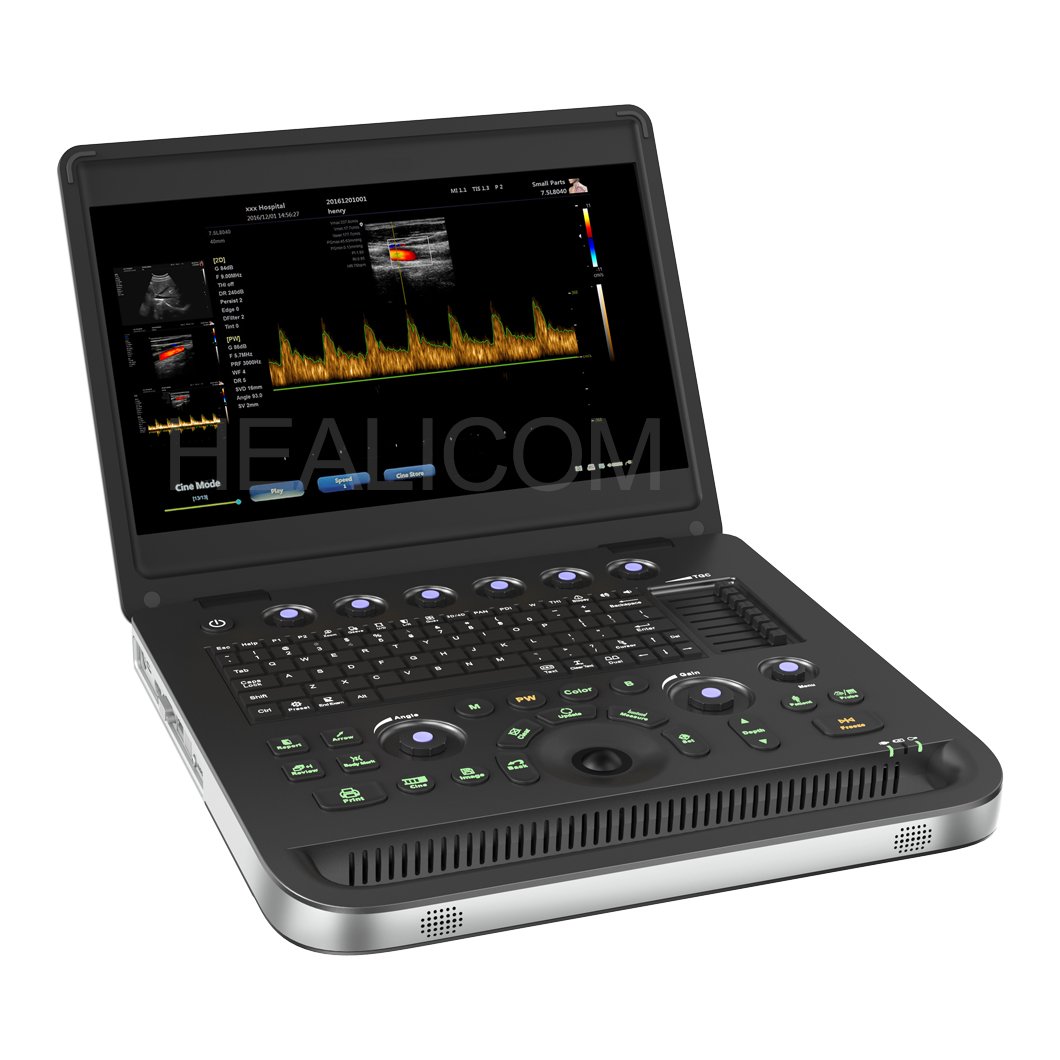

The HUC-220 is a cutting-edge portable medical diagnostic color Doppler ultrasound system. It boasts a compact and lightweight design, making it highly portable for use in various clinical settings. Equipped with a high-resolution display and advanced imaging capabilities, it supports multiple modes such as B-mode, Color Doppler, and 3D imaging. The device features a long-lasting battery, ensuring uninterrupted operation. It also includes tissue harmonic imaging and automatic image optimization for enhanced diagnostic accuracy. With a user-friendly interface, Windows 7 operating system, and ample storage, the HUC-220 is an ideal tool for medical professionals seeking efficient and reliable diagnostic solutions.
Main Parameter | Thin and light weight design; |
15.6 inches 1920X1080 resolution HD display ; | |
5200mAh recharge lithium battery lasts more than 4 hours; | |
Windows 7 operation system; | |
Support 3D imaging; | |
Standard key board and backlight key; | |
Display modes: B, B/B, 4B, B+M,THI, PW,CFM,CFM+B,PDI,PDI+B; | |
Gray scale: 256 levels, | |
5 levels image optimization; | |
THI imaging technology; | |
Rich image processing technology, for instance frames average, view angle, edge enhance, Gamma ,etc | |
CN,EN,RUS,POR,ESP,FR,DE,ID 8 kinds languages; | |
Display penetration depth 1~280mm; | |
Dynamic range: 80~280dB adjustable; | |
Application mode OB,GYN, Superficial organ, Urology, Pediatric, Cardiac etc; | |
Preset the parameter depend on scanning organ; | |
IMT automatic measurement and display results; | |
15 kinds of pseudo color; | |
Support guide line of biopsy puncture; | |
Built-in 128G soild state drive ,make the storage safer and more reliable; | |
Support frequency conversion range: 2MHz~12MHz (depend on probe type); | |
Built-in editable report page ; | |
Gain control: 8 segments TGC and overall gain can be adjusted respectively; | |
Focus position: dynamic electron focusing. |
The HUC-220 Medical Diagnostic Color Doppler Portable Ultrasound is a versatile and advanced imaging device designed for a wide range of clinical applications. It features a lightweight and portable design, making it ideal for both in-hospital use and field examinations. The device is equipped with a 15.6-inch HD display and a 5200mAh battery that lasts over 4 hours, ensuring long-lasting performance.
It supports multiple imaging modes, including B-mode, Color Doppler, M-mode, and 3D imaging, with advanced technologies like tissue harmonic imaging and automatic image optimization. The HUC-220 is particularly useful in various medical fields such as obstetrics and gynecology, cardiology, urology, pediatrics, and superficial organ examinations. Its applications cover a broad spectrum of diagnostic needs, from fetal development monitoring to cardiovascular assessments and superficial tissue analysis. The system also includes features like Auto Doppler Positioning and IMT automatic measurement, enhancing diagnostic efficiency.
